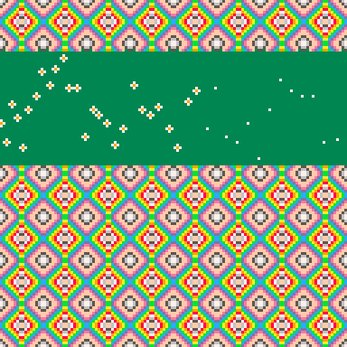

1k scroller
Just watch and enjoy ⭐
*Photo-sensitivity Warning*: Contains fast moving colors and patterns that might affect photo-sensitive viewers.
Updates:
13/09/2022: Rewrote the plasma generation, it looks better and uses less bytes. Used the extra space for adding additional background effects. Changed the font for better contrast. The words are still the same.
Each time the text loops a new background effect is shown. Hold any Pico button to speed through (~20 seconds)
txt="greets to everyone at the pico 1k jam 2022 🐱 its a blast playing all your entries 🐱 some are real gems! 🐱 enjoy squeezing every byte into your code 🐱 i know i have 🐱 good luck to all 🐱 i hope you enjoyed this scroller 🐱 i am out of bytes 🐱 now go make something cool! 🐱 have fun! ★ ★ ★"
_l,_t,_s=1,-10,{} -- INIT globals:
-- _l: loop counter, increments each time demo restarts.
-- _t: the clock, determines the position of text,
-- start negative to give a short pause before
-- first text appears.
-- _s: table of particles, used for various
-- background effects.
function _draw() -- [DRAW LOOP]
camera() -- Reset draw position.
for x=0,15do for y=0,15do -- Fills the display with sprite #1.
h=x%2==0 -- For every odd X position, flip horizontally.
v=y%2==0 -- For every odd Y posiition, flip vertivally.
spr(1,x*8,y*8,1,1,h,v) -- This creates a symmetry in both planes.
end end -- Symmetry is (computationally) cheap and creates
-- a very pleasing effect. Even random shapes
-- look good when drawn symmetrical.
-- Sprite 1 is generated during update().
camera(0,38*sin(t()*.1)+6) -- Translate remaining drawing ops as a sine
-- function of the clock.
-- This makes the text and particles move
-- up-and-down in a repeated wave-like motion.
rectfill(0,47,127,88,_l) -- Draw a box of color _l.
for s in all(_s)do -- Draw particle effects, determined by _l:
if _l==1 then -- Effect #1 (flowing particles)
pset(s.x, --
s.y+4*sin(s.a), -- Modified y as sine of its angle.
2+s.a*3)
elseif _l==2 then -- Effect #2 (rotating lines)
line(s.x, -- We use the formula for calculating a point
s.y, -- on a circle to give this effect:
s.x+4*cos(s.a), -- x = cx + r * cos(a)
s.y+4*sin(s.a), -- y = cy + r * sin(a)
s.y%3) -- where radius is 4 and cx,cy is the center.
elseif _l==3 then -- Effect #3 (flowers)
pset(s.x, -- One pixel for the center, yellow.
s.y+4*sin(s.a),
9)
circ(s.x, -- The petals as a circle with
s.y+4*sin(s.a), -- radius 1.8-angle, as angle increase
1.8-s.a, -- so will radius decrease.
7)
elseif _l==4 then -- Effect #4 (triangulates)
line(64,47, -- Line from top-center of box to particle.
s.x,
s.y+4*sin(s.a),
1)
line(64,87, -- Line from bottom-center of box to particle.
s.x,
s.y+4*sin(s.a), -- Modified y as a sine function.
1)
end
end
f=1 -- f: index of current text effect.
_c=0 -- _c: index of current color, note only some
-- effects use this value.
for i=1,#txt,1 do -- For each letter:
_x=128-_t*32+i*8 -- Set and decrease _x pos over _t.
_y=64 -- Center _y pos.
l=sub(txt,i,i) -- Store letter in l.
if(l=="🐱")f=1+f%#_f -- At each cat, cycle to next effect.
if(l==" ")_c+=1 -- At each space, cycle to next color.
print("\^t\^w"..l,_f[f](i)) -- Print letter double height/width (\t\w)
end -- at position and color determined by the
-- effect in _f[f].
if _x<-64 then -- _x will contain the position of the last
_t=0 -- letter from above loop. If last _x
_l=1+_l%4 -- is off-screen (-64) we restart the clock
end -- and increment the loop counter _l.
end
function _update() -- [UPDATE LOOP]
_t+=.03 -- Move clock forward 1/30 fps.
if(btn()>0)_t+=.1 -- Fast-forward clock on button press.
for s in all(_s)do -- Update all particles.
s.a+=.015 -- Increase angle.
s.x+=1+s.a*2 -- Move x position, accelerates with angle.
if(s.x>128)del(_s,s) -- Remove particle when out of bounds.
end
for n=0,63do -- Generate sprite #1.
sset( 8+n%8, -- Use linear addressing so we only need one loop,
n/8, -- i.e. x as 8+modulo 8 steps, y every 8 steps.
5+(n%8+n/8+_t*12)%12) -- Color is in range 5-16, as a function of
end -- x + y, which creates a sloped rainbow line.
-- Because the sprite is mirrored on-screen
-- the slope creates a diamond shape.
-- Color is offset by clock _t to give the
-- animated effect.
add(_s,{x=0, -- Add a new particle each tick,
y=53+rnd(33),
a=rnd(.5)}) -- Randomize angle, giving particles
-- parallax-like movement.
end
-- [TEXT EFFECTS]
-- Below functions define the different movements
-- and color for the text. Each receives parameter
-- i (letter index), and returns x, y, color.
-- Additional local variable (t) is defined as a
-- parameter to save on local declares.
function crl(i,t) -- The Crawler.
t=_t-.1*i -- Makes a letter crawl across the screen.
_x+=sin(t)*4 --
return _x, -- Returns x, y and color.
_y+sin(t*0.5)*4, --
13+i%3 -- Color range 13-15, based on letter index.
end
function wav(i,t) -- The Wave.
t=_t-.1*i -- Moves a letter in a sine wave motion.
_x+=sin(t*.5)*4 -- X component is adjusted so letters appear
_y+=sin(t*.7)*16 -- to contract & compress near the peaks and valleys.
return _x,_y, --
12+(_y*.1)%4 -- Color range 12-15, based on y position.
end
function acc(i,t) -- The Accordion.
t=_t-.1*i -- Move letters along constant y plane,
_x+=cos(i+t)*4 -- contract & expand on the x plane.
return _x,_y, --
7+_c%9 -- Color range 7-15, based on _c,
end -- i.e. at word boundaries.
function hop(i) -- The Hopper.
_x+=cos(_t-.1*i)*4 -- Makes letters hop along the ground.
_y+=sin(_t-.1*i)*8 --
return _x,_y, --
8+(_x/32)%4 -- Color range 8-11, based on x position.
end
function crc(i) -- The Circle.
_x+=cos(_t+_c*.5)*8 -- Moves each word boundary in circular motion.
_y+=sin(_t+_c*.5)*8 --
return _x,_y,7+_c%9 -- Color range 7-15, based on word boundary.
end
_f={wav,acc,crl,crc,hop} -- List all text effects in global _f.
